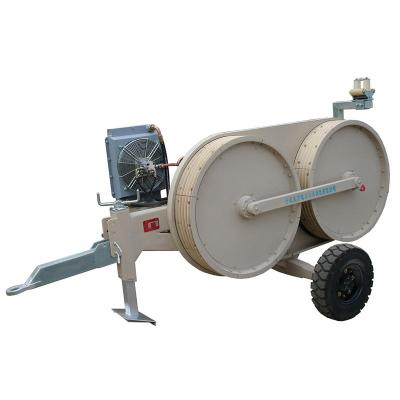

SA-YZ30A Hydraulic Tensioner
- 產品型號：SA-YZ30A
- 產品編號：07155
- 瀏覽次數：6003
SA-YZ30A Hydraulic Tensioner
-
Essential parameter
-
Maximum Tension(kN):30
-
Continuous Tension(kN):25
-
Maximum speed (km/h):5
-
Bull wheel bottom of groove diameter(mm):Φ1200
-
Number of grooves:5
-
Maximum pull-back (kN):20
-
Maximum suitable conductor diameter (mm): Φ32
-
Engine power /speed (kW/rpm):11/2200
-
Dimensions (mm): 3560 ×1600 ×2220
-
Weight(kg):1700
-
Uses
-
it’s used for stringing various conductors and earth wires，including OPGW,ADSS ,etc .
-
Feature
-
Bull wheel with wearproof MC nylon lining segments.
-
Infinitely variable tension control and constant tension conductor stringing .
-
Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety
-
Main component
-
Engine :Chinese famous water cooled diesel engine .
-
Main pump/motor :Chinese famous branded pump and motor .
-
Reducer : EUROPAIR(Italian)
-
If use Honda gasoline engine,the model is SA-YZ30B, item number : 07156
