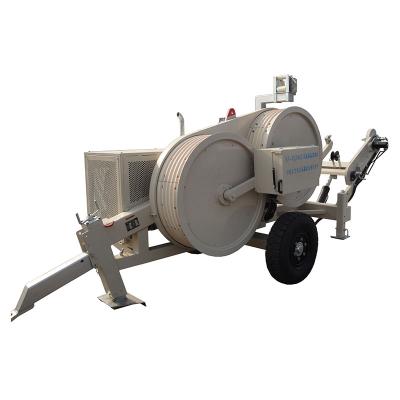

SA-YQZ Series Hydraulic Puller-Tensioner

  • 產品型號:SA-YQZ40C、SA-YQZ40D、SA-YQZ60
  • 產品編號:07223、07224、07228
  • 瀏覽次數:5397

SA-YQZ Series Hydraulic Puller-Tensioner

    Item number

    07223

    07224

    07228

    Model

    SA-YQZ40C

    SA-YQZ40D

    SA-YQZ60

    Max .pull/tension(kN)

    40/40

    40/40

    60/60

    Continuous pull /tension(kN)

    35/35

    35/35

    55/55

    Max .pulling/releasing speed (km/h)

    5/5

    5/5

    5/5

    Bull wheel bottom of groove diameter(mm)

    Φ1200

    Φ1200

    Φ1500

    Bull wheel grooves number

    5 5 6

    Max .suitable rope diameter (mm)

    Φ32

    Φ32

    Φ40

    Reel winder

    Available

    Not available

    Available

    Engine

    Power (kW)

    51 60 82.5

    Speed (rpm)

    2500 2200 2500

    Dimensions (mm)

    4170×1850×2400

    3600×1850×2400

    5520×1890×2400

    Weight (kg )

    3600 3200 4800

    • Uses
    • works equally well for both pulling and tensioning conductors ,ideal for re-conductoring on existing power lines .
    • Feature
    • Bull wheel with wearproof MC nylon lining segment
    • Closed hydraulic circuit and bi-directional variant plunger pump .infinitely variable pull/tension control
    • Rexroth pump and motor, Italian RR reducer
    • Spring applied hydraulic released brake, overload protection is on the safe side and easy operation.
    • There is a hydraulic circuit for drive ,matched reel stand DW2240 A
    • Main component
    • Main hydraulic valve :Rexroth .
    • Radiator :AKG
    • Hydraulic instrument :WIKA
    • Matched reel:GSP1400,item number:07125C
